• IP65 Hybrid Inverter with real time monitoring
• 51.2V/100Ah and 51.2V/200Ah Safest LifePO4
Battery Modules with BMS
• IP55 Outdoor Cabinet with fire suppression and HVAC system
• 15 years life span
• Inverter SiC Technology with Max. Efficiency 98%
• Antiseismic and C4 corrosion level
• 10ms On/Off-Grid Switchover
• 100% Three Phase Unbalance
• Auto Sleep
• VPP Interface Ready
• Cloud + Smart Data Analysis
• Modular design easy expansion up to 6 units in parallel
• Optimized for both on-grid and off-grid (island mode) applications
with ≤ 10ms on/off grid transfer
• Independent Generator port with smart control
• UPS Function
• Flexible DO Control

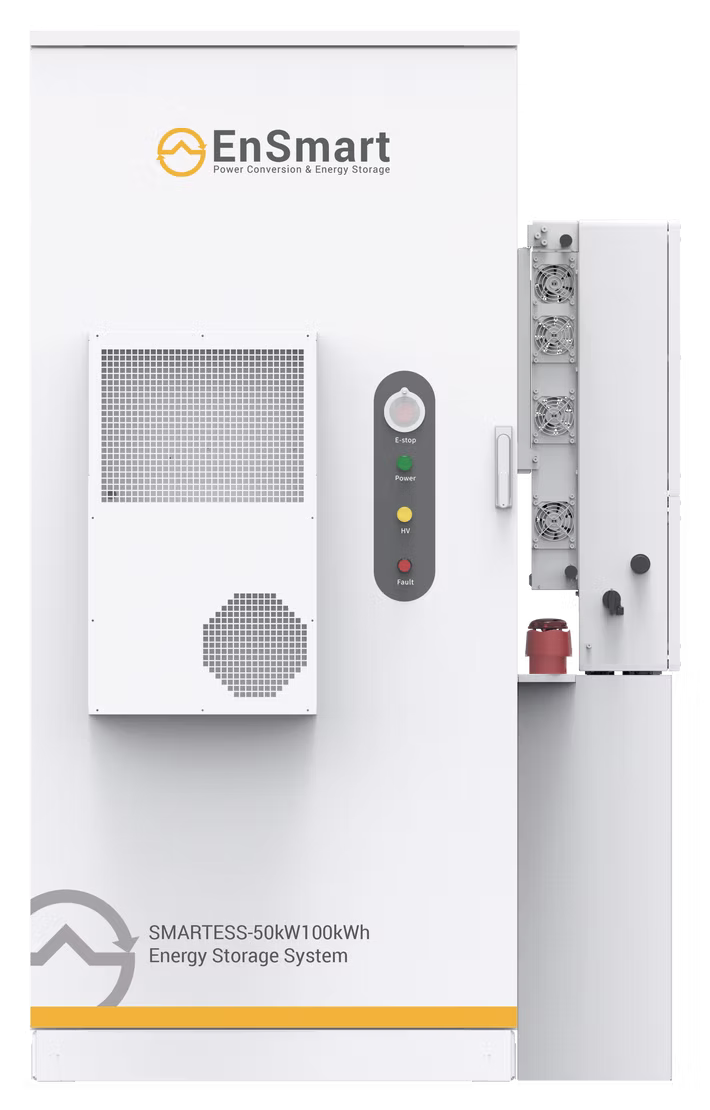

The Smart ESS 50 is an all-in-one hybrid commercial battery storage ESS cabinet designed for small C&I loads. The system integrates the battery, BMS, hybrid inverter, HVAC, fire extinguishing system and EMS. All components required for battery storage, system operation and grid connection are pre-assembled for true plug-and-play use. The cabinet supports battery storage capacities of up to 220 kWh per unit and can be paralleled to expand capacity.
With 200% PV oversizing and four independent MPPTs supporting up to 40A each, the Hybrid ESS Cabinet offers exceptional flexibility for larger and high-current PV installations. The system can accommodate modern high-power and bifacial modules, multiple string groups and different roof orientations while independently optimising the output of each PV array.
This enables greater solar harvesting during mornings, evenings, cloudy conditions and periods of partial shading, helping to accelerate battery charging, reduce grid dependence and maximise overall system utilisation throughout the day.
Ensmart Power ‘s integrated commercial hybrid battery storage solution SmartESS50- Designed to reduce grid dependency and improve energy resilience.
This highly integrated all-in-one Battery Energy Storage System is designed for commercial rooftop PV, energy storage, backup power and generator-hybrid applications. Available in 61 kWh, 100 kWh, 145 kWh and 220 kWh battery capacities, the system is fully pre-assembled, factory-tested and delivered as a plug-and-play solution for faster installation and commissioning.
Combining a high-efficiency SiC hybrid inverter, intelligent energy management, air-conditioned battery cooling and advanced monitoring, the system supports grid-connected, off-grid, AC-coupled and generator-assisted operation. It is suitable for peak shaving, load shifting, solar self-consumption, backup power and demand-charge reduction, while providing reliable indoor and outdoor performance.
· Battery capacities: 61 kWh, 100 kWh, 145 kWh and 220 kWh
· Battery cycle life: ≥8,000 cycles
· IP65 hybrid inverter
· Integrated air-conditioning cooling system
*IP55 Outdoor Cabinet with fire suppression
· Maximum inverter efficiency: Up to 99%
· PV input power: Up to 75 kW
· 4 independent MPPTs, 40 A per MPPT
· MPPT voltage range: 80–850 V DC
· Supports up to 200% PV oversizing
· Maximum battery current: 160 A
· Maximum AC input: 138 kW / 200 A
· Dedicated 200 A generator input
· Supports 100% three-phase unbalanced loads
· Supports up to 200% peak output power
· Up to 6 units in parallel
· AC-coupling and UPS functionality
· Cloud monitoring, smart data analysis and VPP-ready interface
Suitable for peak shaving, load shifting and time-of-use optimisation
· Supports solar self-consumption and demand-charge reduction
We stand out by combining decades of engineering excellence with forward-thinking, modular technology. Here is why industry leaders trust us.
Our unique approach to battery storage and frequency converters sets industry standards.
With 40+ years of experience glabally, we bring unparalleled knowledge and skill to every project.
From initial consultation and installation to comprehensive, round-the-clock support services.
Our solutions are trusted internationally, shaping a sustainable global energy future.
Explore the typical applications of energy storage and discover how EnSmart Power’s systems can help you reduce electricity costs and achieve greater energy independence.
Reduces fuel-use increase efficiency by integrating with renewables.
Enabling Rapid EV Charging and minimise Infrastructure costs.
Generate revenue and enhance grid stability by shifting electricity usage times.
Avoid downtime and economic losses. Get protection against power outages.
A versatile range of battery energy storage solutions designed to meet every scale of commercial and industrial energy demand. From compact systems to utility-scale installations, our BESS solutions optimize energy usage, enhance grid stability, and support a more resilient and sustainable energy future.
Commercial Battery Storage System
The Smart ESS 150 is an all-in-one, compact and highly efficient ESS designed for small C&I loads. The system integrates the battery, BMS, PCS, HVAC, fire extinguishing system and EMS. All components required for battery storage, system operation and grid connection are pre-assembled for true plug-and-play use. The cabinet supports battery storage capacities of up to 300 kWh per unit and can be paralleled to expand capacity.
Commercial Battery Storage System
The Smart ESS 200 is an all-in-one, compact energy storage system designed for small commercial and industrial (C&I) applications. The system integrates the battery, BMS, PCS, HVAC, fire-suppression system, and EMS into a single, pre-assembled cabinet for true plug-and-play installation. Each cabinet supports up to 215 kWh of battery storage and can be connected in parallel to expand capacity.
Commercial Battery Storage System
The Smart ESS 500 is an all-in-one, containerised energy storage system designed for large commercial and industrial (C&I) applications. The system integrates the battery, BMS, PCS, HVAC, fire-suppression system, and EMS into a single, pre-assembled container for true plug-and-play deployment. Each container supports up to 1,013 kWh of battery storage and can be connected in parallel to expand capacity up to 10 MWh.
Commercial Battery Storage System
The Smart ESS 1000 is an all-in-one, containerised energy storage system designed for large commercial and industrial (C&I) applications. The system integrates the battery, BMS, PCS, HVAC, fire-suppression system, and EMS into a single, pre-assembled container for true plug-and-play deployment. Each container supports up to 2,026 kWh of battery storage and can be connected in parallel to expand capacity up to 20 MWh.
