Trolley Mounted
Or Fixed
Option
Reliable 400hz Operation For Aircraft / Vessels
IGBT technology with DSP
control
Rigid and
robust
design
PWM rectifier
and
inverter
Customized IP voltages and frequencies
Frequency Conversion
On-Site
10 - 800 kVA
400 Hz for Aircrafts
400Hz is a type of frequency within AC electrical power, which is the standard for weapon systems, aerospace and aircraft industries across the world. Airports, hangars and aircraft ships must have access to a 400Hz frequency converter as this is not a standard power.

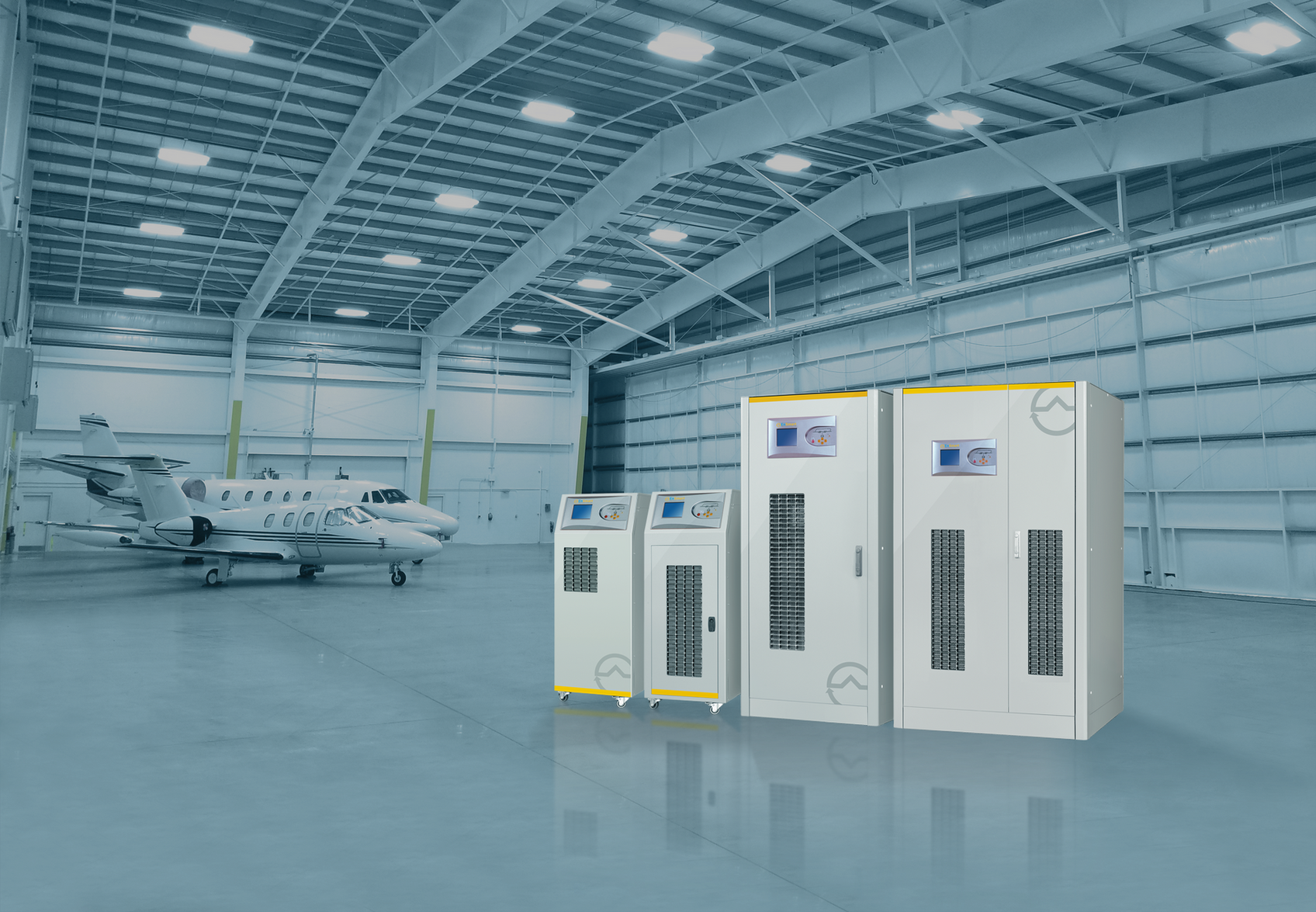

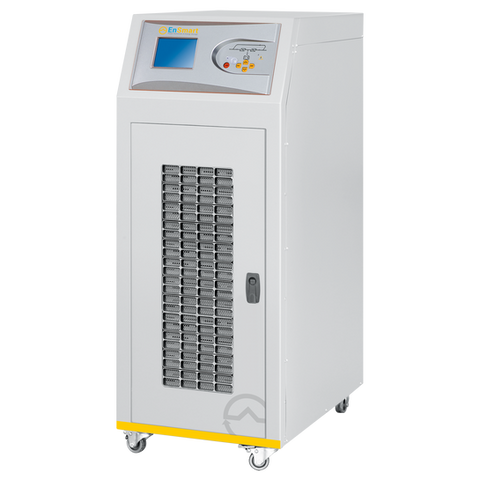

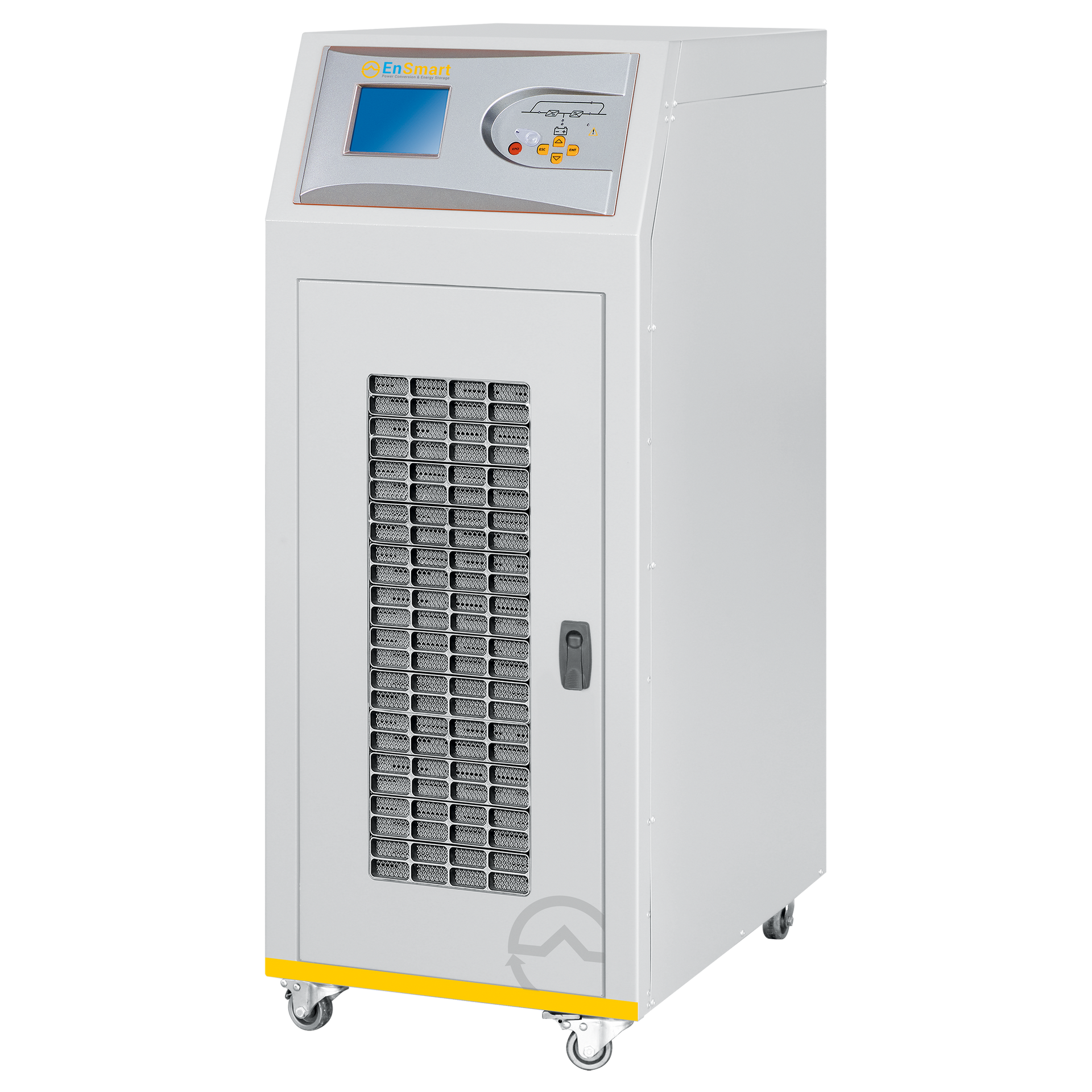

EnSmart designs and manufactures 400Hz Smart FC400 Series frequency converter specially for the control and lighting systems of military airports and aircraft ships. To complete the airfield range of products , to be installed in a maintenance hangar or on the apron of an airport Smart FC400 is available with a secondary output 28VDC and 270VDC power supplies.
Frequency Conversion
On-Site
10 - 800 kVA
400 Hz for Aircrafts
400Hz is a type of frequency within AC electrical power, which is the standard for weapon systems, aerospace and aircraft industries across the world. Airports, hangars and aircraft ships must have access to a 400Hz frequency converter as this is not a standard power.
EnSmart designs and manufactures 400Hz Smart FC400 Series frequency converter specially for the control and lighting systems of military airports and aircraft ships. To complete the airfield range of products , to be installed in a maintenance hangar or on the apron of an airport Smart FC400 is available with a secondary output 28VDC and 270VDC power supplies.
Stable Voltage & Frequency
Clean, Full Sine-Wave Output at 400hHz Frequency And Voltage
Highly Flexible
Options Available for Nema and IP Enclosures and Controlls
Solid State Design
Small Footprint and Front Access for Easy Service
Stable Voltage & Frequency
Clean, Full Sine-Wave Output at 400hHz Frequency And Voltage
Highly Flexible
Options Available for Nema and IP Enclosures and Controlls
Solid State Design
Small Footprint and Front Access for Easy Service
Packed with industry-leading Smart Features
Super Combo of GPU + 28V DC Power: The onboard electrical system in aircraft, helicopters and jets is a 28 VDC voltage. To prolong the lifetime of the battery, or in case the battery is empty, an external 28 V Ground Power Unit is supplied with Smart FC400, also called a 28V DC rectifier unit.
-
Reliable 400hz Operation For Airports, Aircraft Vessels
-
50Hz/60Hz to 400hz Frequency Conversion
-
IGBT technology with DSP control
-
PWM rectifier and inverter
-
Rigid and robust design
-
Mobile on trolley and under-bridge mounting versions,
-
PCB tropicalization treatment
-
Customized IP Enclosures, voltages and frequencies.
-
28VDC Auxiliary Output with its special connector can
be implemented for for Aircraft tests. -
10 years spare parts availability
Robust & Reliable Ground Power Unit
At EnSmart, we provide more than just energy management solutions – we offer a reliable partnership to help you achieve greater energy efficiency, resilience and sustainability.
Robust
Static, Solid-sate design for ultimate durability and protection
Reliable
State-of-the-art IGBT Technology with DSP Control. PWM Rectifier and Inverter
High Efficiency up to 96%
Maximum Power (PF 0,9 and;
PF 1 for kW=kVA)
Cost-Effective
Lower operating cost when compared to Motor Generators Green, produces less pollution Silent
Flexible
Input-Output Galvanic Isolation
Version with Anti-Vibration
Mobile Version on Trolley
Additional Power Module 28VDC 200-400-600-800A(28VDC Auxiliary Output with its special connector to be implemented for Aircraft tests.)
Specialists in Industrial Frequency Conversion
At EnSmart Power UK , we design and manufacture a wide range of frequency converters with our expertise over 40 years of power conversion. EnSmart Frequency Converters help industries for converting fixed-frequency (50 Hz / 60 Hz), fixed-voltage utility power into alternating current with adjustable frequency ( 50hz / 60hz /400hz) and voltage.
Our product range includes single and 3 phase solid-state static frequency converters, marine shore power converters, 400 Hz aircraft ground power converters, and variable frequency drives. These systems are designed for demanding applications across aviation, marine, rail, and export equipment sectors. EnSmart Power’s IGBT rectifier technology high efficiency Static Frequency Converters are available in large power range handling capacity from 10kVA up to 50MW and produced as Modular or Stand-Alone and comes in various IP enclosures IP23, IP42, IP31, IP54, IP65.
Your Trusted Partner In Frequency Converter
Committed to power the progress in every industry.
9001
45001
14001
10002
Partner with us to harness the power of sustainable energy and ensure a smarter, more efficient tomorrow.
With over 40 years of experience in frequency and voltage conversion technologies, we are committed to provide custom engineered bespoke solutions for every industry. From the initial survey that evaluates power consumption to the start-up and commissioning, training and maintenance services - we have got you covered.
All EnSmart Frequency Converters are exported worldwide to provide reliable power the the industry leading clients and ensure compliance with highest international standards.
Trusted by businesses globally throughout a wide range of industries and applications.
Application Sectors For Frequency Converters
Explore EnSmart 400Hz static frequency converter ratings from 10kVA to 800kVA convert 50Hz or 60Hz mains power into stable 400Hz output for airports, aircrafts ground power and aerospace laboratory applications.
How does this work for Industrial users?
Getting started with our Industrial energy solutions has never been easier. From your first chat with our experts, to switching on your new system, we’ll guide you through every step.
YouTube Chanel
Full Capacity
Video Channel
Tour of the EnSmart Power Testing Facilities in Braintree UK
Welcome to the EnSmart Power video channel, your go-to for insights, updates and practical guidance on smarter energy solutions. Here you’ll find stories, demonstrations and expert perspectives on how to reduce costs, minimise emissions and improve energy efficiency. Take a look...
Our Latest Blogs
A versatile range of battery storage solutions designed to meet every scale of commercial and industrial energy demand. From compact systems to large-scale installations, built for performance, flexibility, and future growth.
Frequently Asked Questions
Any questions? Explore quick answers to help you make the right energy decision for your business.
400 Hz is a type of frequency within AC electrical power, which is the standard for weapon systems, aerospace and aircraft industries across the world. Aircrafts can not use the 50Hz or 60Hz power coming from the utility supply when on the ground.
Airports, hangars and aircraft ships must have access to a Ground Power Unit ( GPU ) 400Hz frequency converter as this is not a standard power.
A 400hz frequency converter takes 50Hz or 60 Hz power directly from the utility and converts it to 400hz which is acceptable to aircraft and military power systems.The worldwide standard for aerospace and aviation is 400hz. Using 400hz in the airports all around the world is a global standard. The higher frequency means less material ( volume / mass ) for cables, transformers and generators and less power loss. The saving of weight allows to increase cargo capacity, to carry more passenger and helps to decrease fuel consumption.
Aircraft electrical power is generated by an Integrated Drive Generator (IDG) mounted on the engine gearbox.
IDG output:
• 115/200 V AC
• 3-phase
• 400 Hz (constant frequency)
The key requirement is that the aircraft electrical system must receive a constant 400 Hz, regardless of engine RPM changes.If aircraft used 50–60 Hz, the result would be:
• Larger motors
• Heavier transformers
• Bigger generators
• Increased wiring weight
• Higher overall aircraft weight
• Increased fuel consumption
In aviation, weight is everything.Using 400 Hz allows:
• Smaller transformers
• Smaller motors
• Smaller generators
• Lighter wiring
• Space and weight savings
• Reduced fuel burn
That’s why 400 Hz power is used for:
• Cabin lighting
• Galleys
• Air conditioning packs
• Hydraulic pumps
• Major aircraft systems
400 Hz is the best balance between the following:
• Weight reduction
• Efficiency
• Reliability
• EMI control
That’s why aircraft use 400 Hz AC power instead of 50/60 Hz.A Ground Power Unit (GPU) is ground support equipment (GSE) which provides clean power for both maintenance and engine usage starting the aircraft while they are parked in the hangar, or on the runaway. GPUs in aviation are crucial equipment, as they deliver specified power through the use of a solid state battery or diesel versions.
GPUs powered by diesel engines are known to be the most portable. They require fuel and engine maintenance, they are costly and cause noise / emissions. Also the efficiency of a Diesel GPU (Motor Generator Set) is not high at normal level of loads, therefore the operation costs are high.
On the other hand, electrical ground power units solid-state frequency converters are much quieter than diesel GPU units, creating less pollution. They are more eco-friendly and highly efficient (up to 94%) and a green choice.
EnSmart Power supplies 400 Hz AC GPUs, 28 VDC GPUs or combinations. A DC (Direct Current) GPU usually ranges from a 12 to 24V system, and is used for general aircraft, smaller jets and turboprop airplanes.
An AC (Alternating Current) GPU is more similar to the type of electricity that powers buildings and residence. The electrical system usually runs in the 400Hz range, and is more oriented towards larger aircrafts and airline planes.The system converts standard grid power (50 Hz or 60 Hz) into 400 Hz output, required by aircraft systems.
Yes, it is available in:
-
Mobile trolley-mounted versions
-
Fixed installations (hangars, aprons, bridges)
-
Yes, customisation options include:
-
Different voltages and frequencies
-
IP-rated enclosures
-
Anti-vibration designs
-
Additional DC outputs (28VDC / 270VDC)
-
EnSmart Power frequency converters are used in NATO and US overseas bases. Equipments for these bases are selected through MIL standards (e.g., 400 Hz per MIL-STD-704) Mission type (fixed base vs deployable). EnSmart Power products meet these standards.
