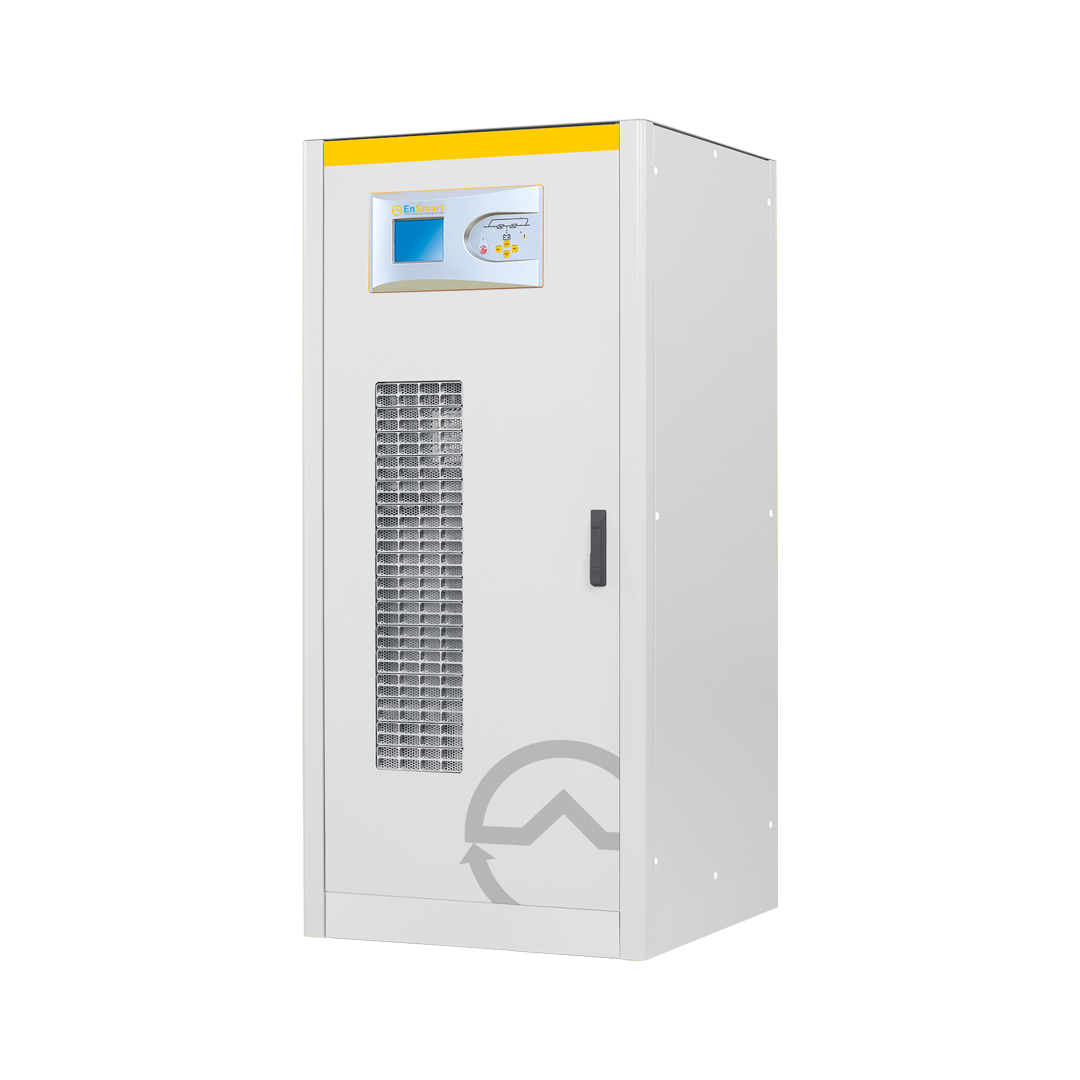

Online UPS 3 Phase

Smart LV 10-1000kVA

High Effiency

With Innovative 3 Level Technology one of the highest level energy efficiencies in the industry.

Maximum Availability

Parallel configuration up to 8 units per redundancy (N+1) and power increase.

Lowest Total Cost of Ownership

IGBT based power factor correction technology provides input power factor close to 1 (≥ 0,99).

Flexible

External battery cabinets for different sizes of batteries to provide extended runtimes.

Smart LV
10-1000 kVA

Online UPS 3 Phase

Smart LV Series is highly efficient transformer-less 3-Phase Online UPS designed to meet the three phase power protection requirements of high density medium and large data centers and industrial applications.

With advanced Three level inverter and rectifier design the Smart LV Series brings the newest power conversion technology and delivers efficiency up to 96% at 50-75% load operation which is the most common operating range.

Packed with industry-leading
Smart Features

Smart LV UPS with IGBT based power factor correction technology provides input power factor close to 1 (≥ 0,99). The high input power leads to reduced electricity pay-out, minimizes cable, switchboard, fuse and generator requirements, thus reducing investment cost.

High Efficiency & Low Total Cost of Ownership

Less energy consumption to supply the loads thanks to high efficiency up to 96%.
Reduced energy loss.
Reduced electricity usage and air conditioning requirements.
Reduction in operating cost of UPS.
Low input current total harmonic distortion (THDi) less than 3% helps to avoid the disturbance and expensive harmonic filters.
Small footprint and easy maintenance.

High Output Power Factor 1

Output power factor of 1 (kVA=kW) rate provides up to 25% more active power than a traditional UPS.
Suitable for modern power supply application with unit or capacitive power factor (e.g. new servers generation).
No reduction in active power from 0,9 leading to 0,9 lagging.

Maximum Availability

Parallel configuration up to 8 units per redundancy (N+1) and power increase.
Loop connection helps the UPS system to continue the operation when the connection cable is inturrupted.

  • Dual Input
  • Common Battery
  • Backfeed Protection
  • Cold Start (Optional)
  • Advanced Battery Management
  • Short Circuit and Overload Protection
  • Parallel Ready
  • Redundant Power Supply
  • Power Walk-in for Progressive Rectifier Start-up when the
  • Mains is Restored
  • Battery Temperature Sensor
  • Static and Manual Bypass Operation
Loading technical specifications...
MODEL Smart LV 10 kVA
Capacity 10 kVA
Power Watt 10 kW
INPUT
Nominal Voltage 380/400/415 VAC 3 Phase +N (Optional 220/380 VAC -37% +22% 3P+N+PE)
Voltage Tolerance -20% +15%
Frequency Tolerance 50 / 60 Hz ±10% (Selectable)
Power Factor >0.99
Total Harmonic Distortion THDi <3%
OUTPUT
Power Factor 1.0
Nominal Voltage 380/400/415 VAC 3 Phase + N
Voltage Tolerance Static ±1, Dynamic ±3
Frequency Tolerance 50Hz / 60Hz ±0,01% (Battery Mode)
Output THD Linear Load <1% / Non-Linear Load <3%
Crest Factor 3:1
Overload Capacity At 125% Load 10min, at 150% Load 1min
Efficiency (Online Mode) 0,96
Efficiency (Eco Mode) Up to 99%
BYPASS
Nominal Voltage 380/400/415 VAC 3 Phase + N
Voltage Tolerance 15% (Configurable from 10% to 30%)
Frequency Tolerance ±5 (Selectable)
BATTERY
Type VRLA / GEL
Quantity (12V DC VRLA) 60
Charge Capacity 12,5% of Active Power (Nominal 0,1 C10, Adjustable)
Recharge Time 6-8 Hours
Internal Battery 60 x 7Ah or 9Ah
ENVIRONMENTAL
Operating Temperature For UPS 0°C/+40°C For Battery +15°C/+25°C
Storage Temperature For UPS -15°C/+45°C For Battery 0°C/+30°C
Protection Class IP20
Humidity 0-95% Without Condensation
Altitude <1000m, Correction Factor 1. <2000m, Correction Factor >0.92, <3000m; Correction Factor >0.84
Noise Level <53 dBA
COMMUNICATION
Communication Port RS232 Standart, RS485 and SNMP Adapter Option
STANDARDS
Quality ISO 9001, ISO 14001, ISO 18001, TSE-HYB
Performance EN62040-3 (VFI-SS-111, Bureau Veritas Certified)
EMC/LVD EN62040-2, EN62040-1, EN60950, (TÜV SÜD Certified)
DIMENSIONS &WEIGHT
Cabinet Dimensions (WxDxH) (mm) 490x805x1190 mm
Net Weight (kg) 125 kg
Packaging Dimensions (WxDxH) (mm) 600x900x1400 mm
Gross Weight (kg) 145 kg
NOTES
Notes * under certain conditions.
Notes 3 Phase in / 1 Phase Out Version is Available. (10 to 30kVA)

FEATURES

EnSmart Power’s Smart LV Series UPS is a highly efficient, transformerless, three-phase online UPS designed with high-quality European components to meet the power protection requirements of high-density medium and large data centers, as well as industrial applications.

Featuring advanced three-level inverter and rectifier technology, the Smart LV Series delivers the latest in power conversion technology, achieving efficiency levels of up to 96% at 50–75% load operation — the most common operating range.

High Efficiency & Low Total Cost of Ownership

  • Lower energy consumption thanks to efficiency levels of up to 96%.

  • Reduced energy losses.

  • Lower electricity consumption and air conditioning requirements.

  • Reduced UPS operating costs.

  • IGBT-based power factor correction technology provides an input power factor close to unity (≥ 0.99), reducing electricity costs and minimizing cable, switchboard, fuse and generator requirements.

  • Low input total harmonic distortion (THDi) of less than 3% helps prevent electrical disturbances and reduces the need for expensive harmonic filters.

  • Compact footprint and easy maintenance.

High Output Power Factor of 1

  • An output power factor of 1 (kVA = kW) provides up to 25% more active power than traditional UPS systems.

  • Suitable for modern power applications with unity or capacitive power factors, including next-generation servers.

  • No reduction in active power across power factors ranging from 0.9 leading to 0.9 lagging.

Maximum Availability

  • Parallel configuration of up to 8 units for redundancy (N+1) and increased power capacity.

  • Loop connection helps maintain UPS operation if a communication cable is interrupted.

Standard Electrical Features

  • Dual Input

  • Common Battery

  • Backfeed Protection

  • Cold Start (Optional)

  • Advanced Battery Management

  • Short Circuit and Overload Protection

  • Parallel Ready

  • Redundant Power Supply

  • Power Walk-in for Progressive Rectifier Start-up When Mains Power Is Restored

  • Battery Temperature Sensor

  • Static and Manual Bypass Operation

Advanced Communication Features

  • 500 Real-Time Event Logs with Detailed Parameters

  • User-Friendly Multilingual 320 × 240 Graphic Display Providing Operational Information

  • Monitoring and Shutdown Software

  • RS232 Serial and RS485 Ports

  • Modbus RTU (Optional)

  • 2 Communication Slots

  • Remote Emergency Power Off (Optional)

  • Remote Display Panel (Optional)

  • Dry Contact (Optional)

  • SNMP (Optional)

  • ProfiBUS (Optional)

Flexibility

  • Temperature sensor for external battery cabinets to support extended runtimes.

  • External battery cabinets accommodating different battery sizes for extended runtimes.

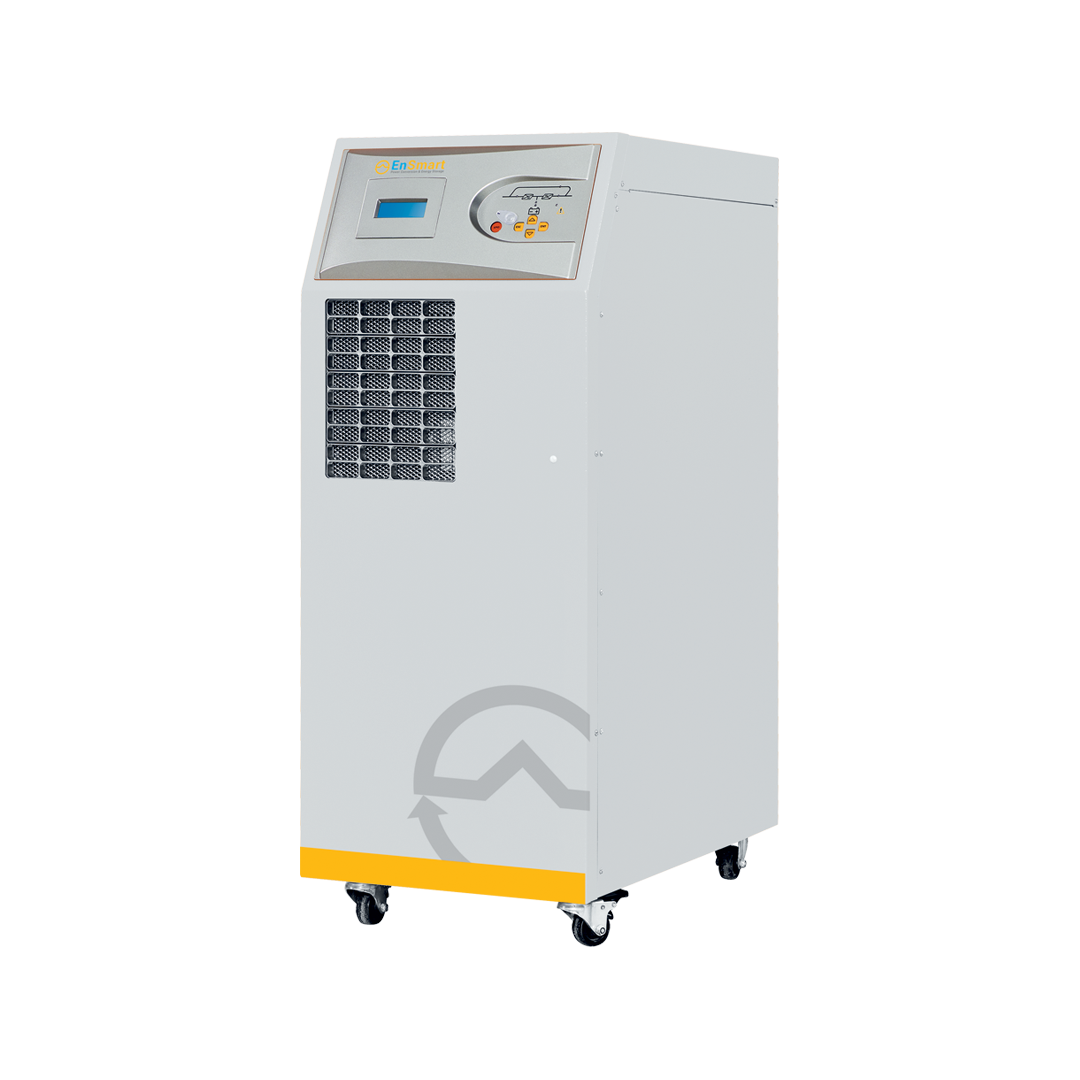

  • Different cabinet sizes for 10–40 kVA models, allowing greater internal battery capacity when longer autonomy times are required.

  • Three-phase input / single-phase output (3/1) versions available for 10–30 kVA power ratings.

  • Frequency converter operating mode.

  • Isolation transformers to provide flexible neutral connections or galvanic isolation between input and output.

  • Versions compatible with EN 50171 for supplying power to emergency lighting systems.

Available UPS Power Ratings

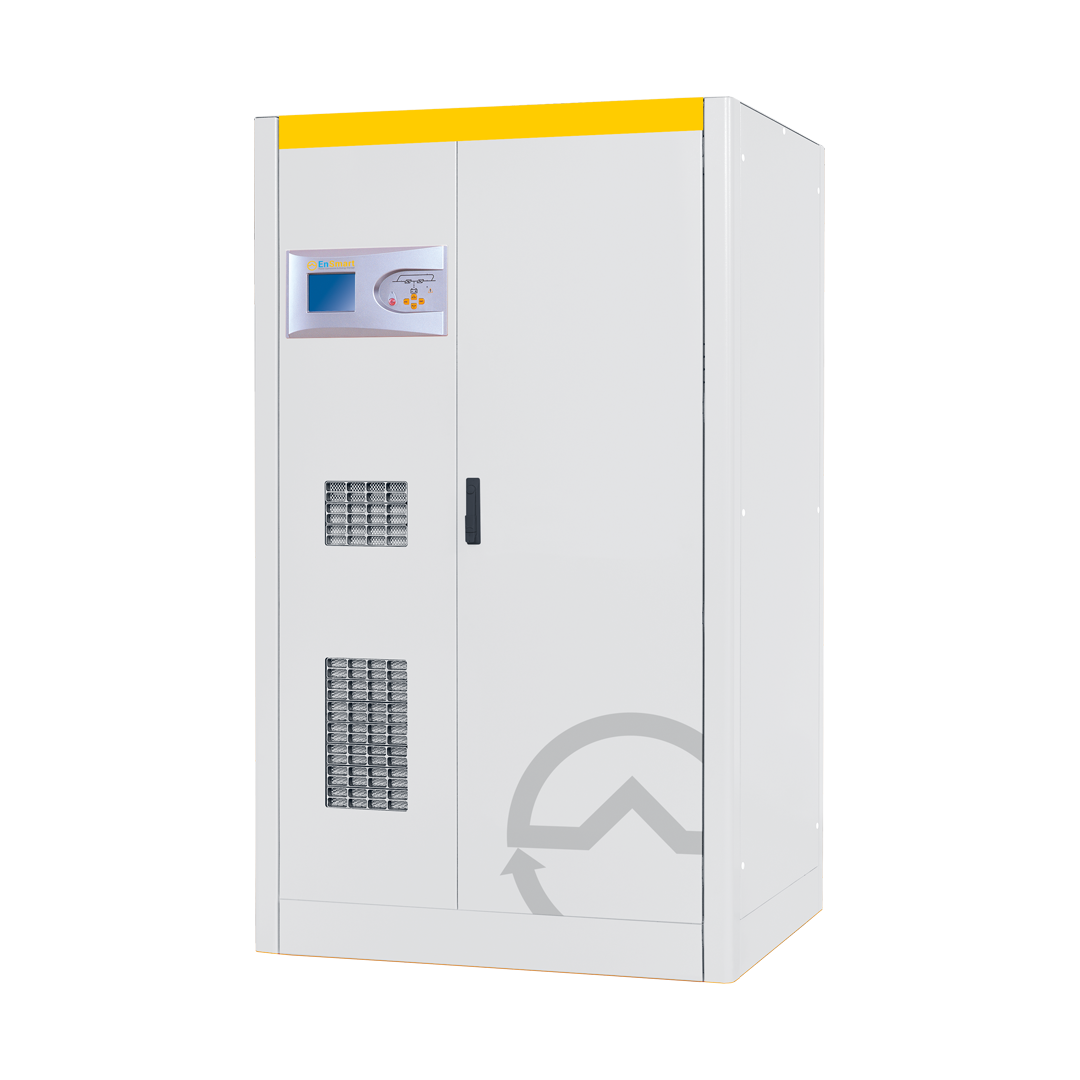

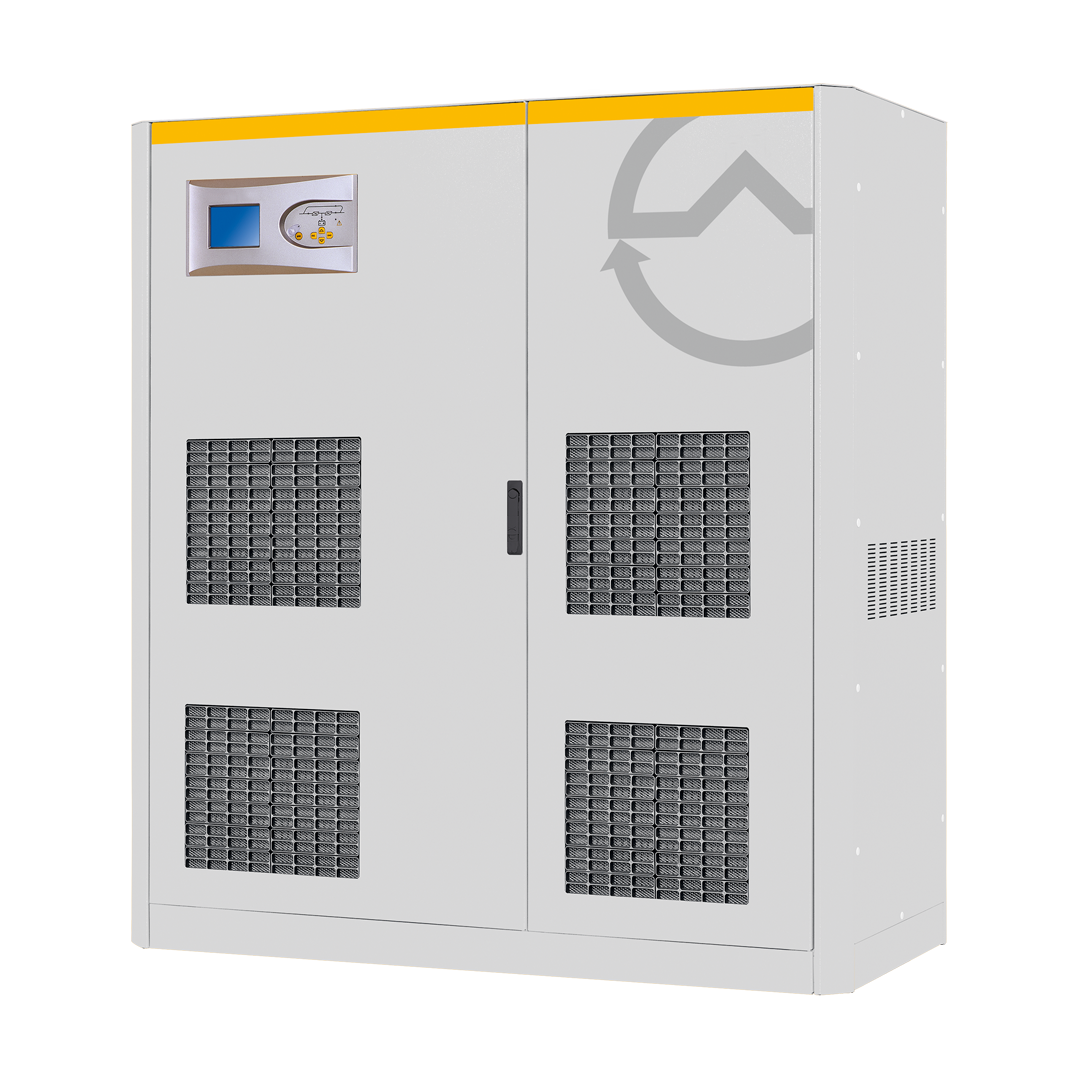

Smart LV 10 kVA · Smart LV 15 kVA · Smart LV 20 kVA · Smart LV 30 kVA · Smart LV 40 kVA · Smart LV 60 kVA · Smart LV 80 kVA · Smart LV 100 kVA · Smart LV 120 kVA · Smart LV 160 kVA · Smart LV 200 kVA · Smart LV 250 kVA · Smart LV 300 kVA · Smart LV 400 kVA · Smart LV 500 kVA · Smart LV 600 kVA · Smart LV 800 kVA · Smart LV 1000 kVA
